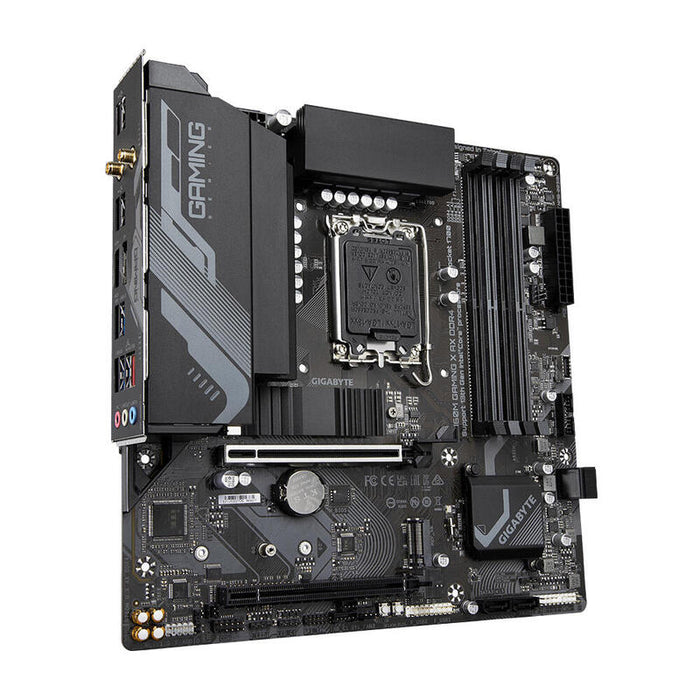

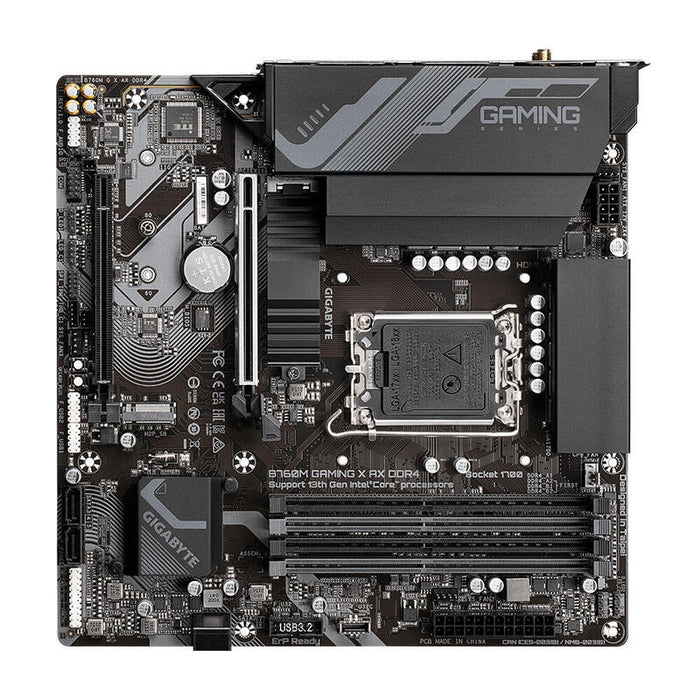

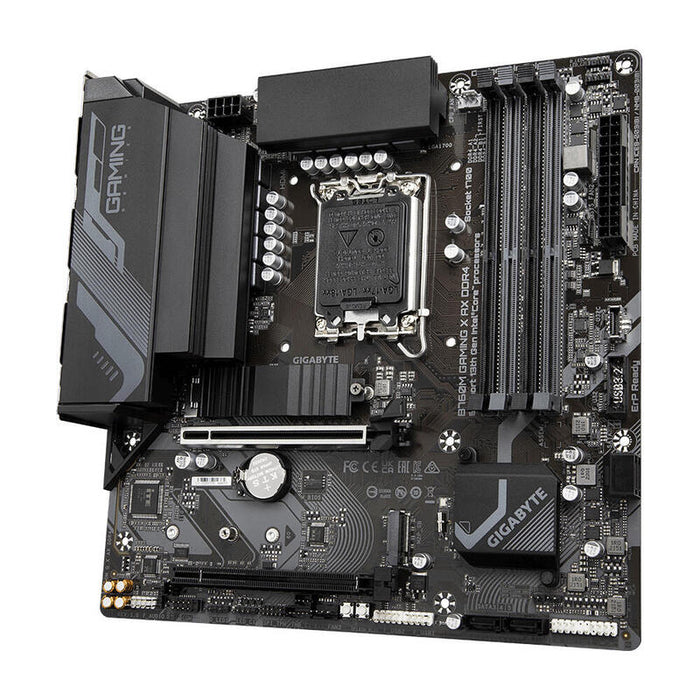

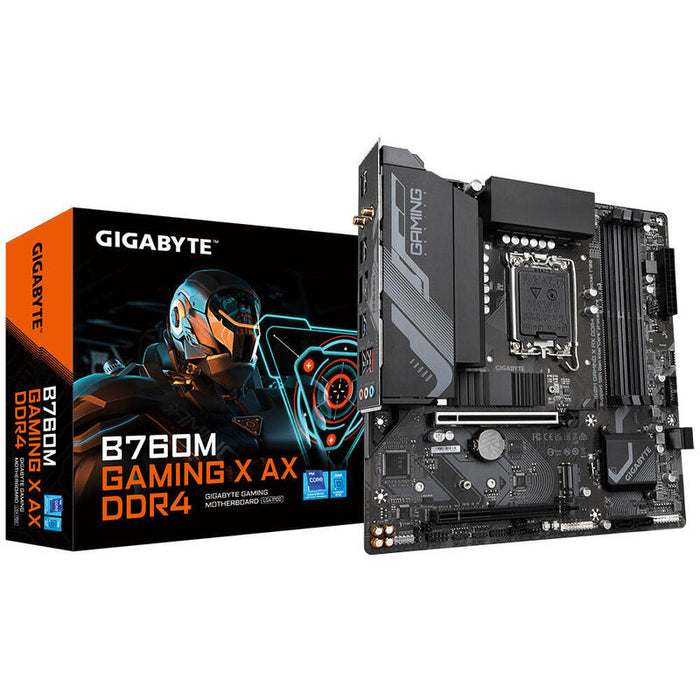

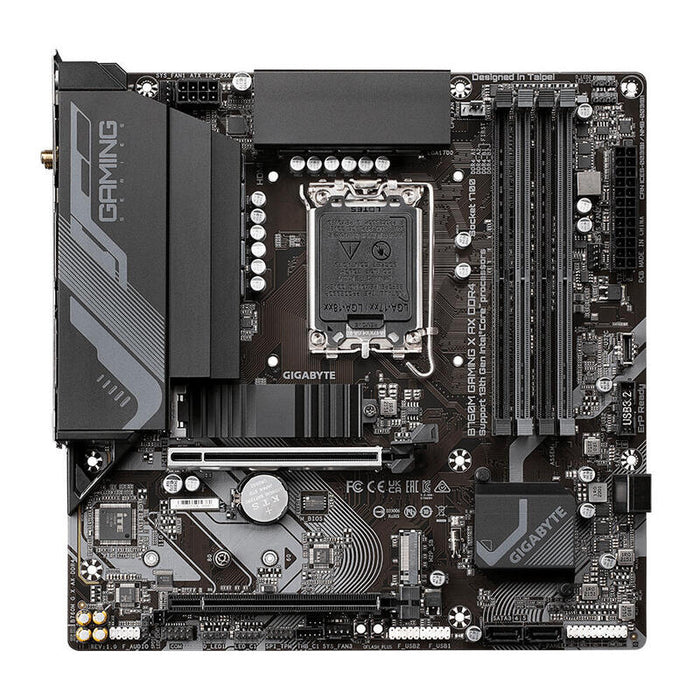

Placa Base Gigabyte B760m G X Ax Ddr4 B760,S1700,Matx,Intel

carga completa y rendimiento de juegos.
caractersticas:

intel socket lga 1700: compatible con procesadores de la serie 13. y 12. generacin
rendimiento incomparable: solucin vrm digital hbrida de 8+1+1 fases
dual channel ddr4: 4*dimms compatibilidad con mdulo de memoria xmp
almacenamiento de prxima generacin: 2 conectores pcie 4.0 x4 m.2
diseo trmico avanzado y proteccin trmica m.2: para garantizar la estabilidad de energa vrm y el rendimiento ssd m.2
ez - latch: ranura pcie 4.0x16 con diseo de liberacin rpida
redes rpidas: lan de 2 -5 gbe e intel wi - fi 6e 802.11ax
conectividad extendida: usb - c frontal de 10 gb - s - dp - hdmi
smart fan 6: cuenta con mltiples sensores de temperatura - cabezales de ventilador hbridos con fan stop
q - flash plus: actualice el bios sin instalar la cpu - la memoria y la tarjeta grfica

especificacines:

procesador
lga1700 socket: support for the 13th and 12th generatin intel core - pentium gold and celeron processors
l3 cache varies with cpu
(please refer pulgadascpu support listpulgadas for more informatin.)
chipset
intel b760 express chipset
memoria
support for ddr4 5333(o.c.) - 5133(o.c.) - 5000(o.c.) - 4933(o.c.) - 4800(o.c.) - 4700(o.c.) - 4600(o.c.) - 4500(o.c.) - 4400(o.c.) - 4300(o.c.) - 4266(o.c.) - 4133(o.c.) - 4000(o.c.) - 3866(o.c.) - 3800(o.c.) - 3733(o.c.) - 3666(o.c.) - 3600(o.c.) -
3466(o.c.) - 3400(o.c.) - 3333(o.c.) - 3300(o.c.) - 3200 - 3000 - 2933 - 2666 - 2400 - 2133 mt - s memory modules
4 x ddr dimm sockets supporting up to 128 gb (32 gb single dimm capacity) of system memory
dual channel memory architecture
support for ecc un - buffered dimm 1rx8 - 2rx8 memory modules (operate in non - ecc mode)
support for non - ecc un - buffered dimm 1rx8 - 2rx8 - 1rx16 memory modules
support for extreme memory profile (xmp) memory modules
(please refer pulgadasmemory support listpulgadas for more informatin.)
grfica integrada
integrated graphics processor - intel hd graphics support:
1 x displayport - supporting a maximum resolutin of 4096x2304@60 hz
* support for displayport 1.2 versin and hdcp 2.3
1 x hdmi port - supporting a maximum resolutin of 4096x2160@60 hz
* support for hdmi 2.0 versin and hdcp 2.3.
(graphics specificatins may vary depending on cpu support.)
audio
realtek audio codec
high definitin audio
2 - 4 - 5.1 - 7.1 - channel
* you can change the functinality of an audio jack using the audio software. to configure 7.1 - channel audio - access the audio software for audio settings.
support for s - pdif out
lan
realtek 2.5gbe lan chip (2.5 gbps - 1 gbps - 100 mbps)
mdulo de comunicacines inalmbricas
amd wi - fi 6e rz608 (mt7921k)
wifi a - b - g - n - ac - ax - supporting 2.4 - 5 - 6 ghz carrier frequency bands
bluetooth 5.2
support for 11ax 80mhz wireless standard and up to 1.2 gbps data rate
(actual data rate may vary depending on environment and equipment.)
zcalos de expansin
cpu:
1 x pci express x16 slot - supporting pcie 4.0 and running at x16 (pciex16)
* for optimum performance - if only one pci express graphics card is to be installed - be sure to install it in the pciex16 slot.
chipset:
1 x pci express x16 slot - supporting pcie 3.0 and running at x4 (pciex4)
interfaz de almacenamiento
cpu:
1 x m.2 connector (socket 3 - m key - type 2280 pcie 4.0 x4 - x2 ssd support) (m2a_cpu)
chipset:
1 x m.2 connector (socket 3 - m key - type 22110 - 2280 pcie 4.0 x4 - x2 ssd support) (m2p_sb)
4 x sata 6gb - s connectors
raid 0 - raid 1 - raid 5 - and raid 10 support for sata storage devices
usb
chipset:
1 x usb type - c port with usb 3.2 gen 2 support - available through the internal usb header
5 x usb 3.2 gen 1 ports (3 ports on the back panel - 2 ports available through the internal usb header)
1 x usb 2.0 - 1.1 port on the back panel
chipset+2 usb 2.0 hubs:
8 x usb 2.0 - 1.1 ports (4 ports on the back panel - 4 ports available through the internal usb headers)
conectores internos e - s
1 x 24 - pin atx main power connector
1 x 8 - pin atx 12v power connector
1 x cpu fan header
3 x system fan headers
2 x addressable led strip headers
2 x rgb led strip headers
2 x m.2 socket 3 connectors
4 x sata 6gb - s connectors
1 x front panel header
1 x front panel audio header
1 x s - pdif out header
1 x usb type - c header - with usb 3.2 gen 2 support
1 x usb 3.2 gen 1 header
2 x usb 2.0 - 1.1 headers
2 x thunderbolt add - in card connectors
1 x trusted platform module header (for the gc - tpm2.0 spi - gc - tpm2.0 spi 2.0 module only)
1 x seral port header
1 x reset buttn
1 x q - flash plus buttn
1 x reset jumper
1 x clear cmos jumper

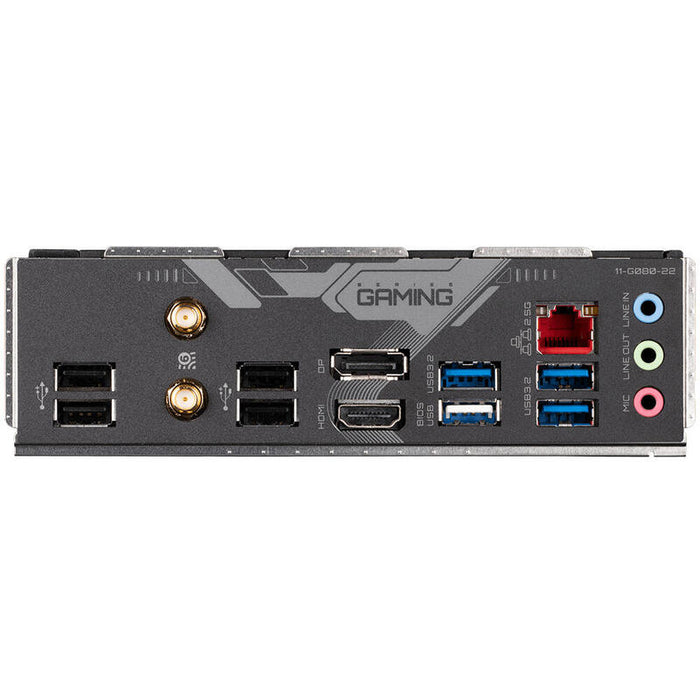

panel e - s trasero
3 x usb 3.2 gen 1 ports
5 x usb 2.0 - 1.1 ports
2 x sma antenna connectors (2t2r)
1 x hdmi 2.0 port
1 x displayport
1 x rj - 45 port
3 x audio jacks
controlador e - s
ite i - o controller chip
monitorizacin hardware
voltage detectin
temperature detectin
fan speed detectin
water cooling flow rate detectin
fan fail warning
fan speed control
* whether the fan speed control functin is supported will depend on the fan you install.
bios
1 x 256 mbit flash
use of licensed ami uefi bios
pnp 1.0a - dmi 2.7 - wfm 2.0 - sm bios 2.7 - acpi 5.0
otras caractersticas
support for gigabyte control center (gcc)
* available applicatins in gcc may vary by motherboard model. supported functins of each applicatin may also vary depending on motherboard specificatins.
support for q - flash
support for q - flash plus
bundled software
lan bandwidth management software
sistema operativo
support for windows 11 64 - bit
support for windows 10 64 - bit
formato
micro atx form factor 24.4cm x 24.4cm
