Modul Minipcie I O Pcie Full Size 4 X Seriell Rs-232 Mit Spannungsversorgung

Descripción

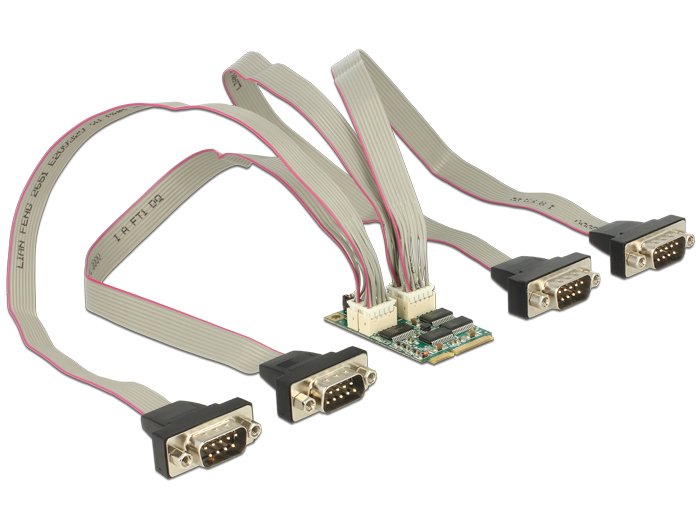

This MiniPCIe adapter by Delock expands your system by four additional serial ports, which you can lead out through the slot bracket. You can connect different serial devices like printer, scanner, modem etc. to this adapter.

Detalles tecnicos

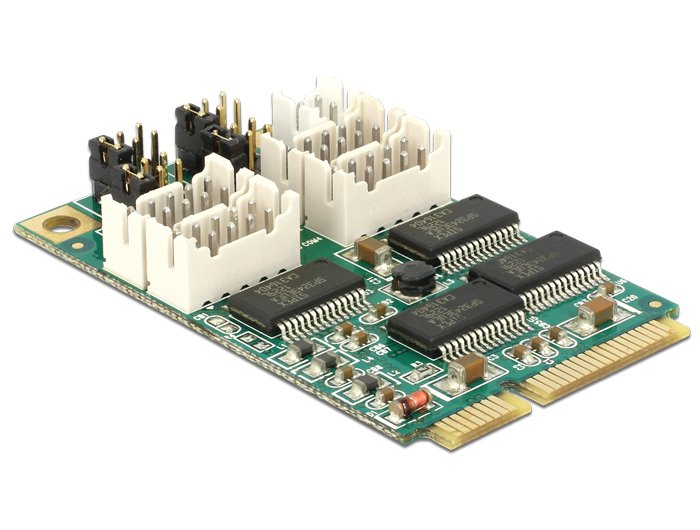

• Connector:
  on the module:
  4 x 10 pin pin header male
  on the slot bracket (standard) 2 x:
  2 x serial RS-232 DB9 male with screw nuts
  or on the slot bracket (low profile) 4 x:
  1 x serial RS-232 DB9 male with screw nuts
• Chipset: Exar XR17V354
• Form factor: MiniPCIe full size
• Interface: PCI Express version 2.0
• Data transfer rate up to 921.6 Kb/s
• Selectable voltage supply 5 V / 12 V or RI
• Compatible with 16C550 UART
• Datenbits: 5, 6, 7, 8
• Signals:TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, 5V/12V/RI
• Operating Temperature: -30 ~ 75?
• Storage Temperature: -40 ~ 85
• Cable length: ca. 30 cm (incl. connector)
• Relative humidity: 0 - 95 % (non condensing)
• Cable length incl. connectors: ca. 30 cm

Requisitos del sistema

• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64/11, Linux Kernel 2.6
• Mainboard with a free MiniPCIe slot with a PCIe interface

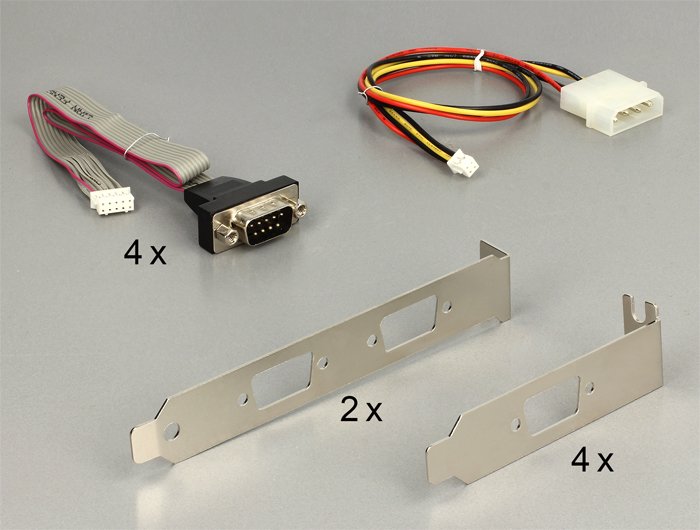

Contenido del paquete

• MiniPCIe module
• 4 x serial connection cable (pin header &gt, DB9)
• Power cable
• 2 x standard slot bracket with two DB9 ports
• 4 x low profile slot bracket with one DB9 port
• Driver CD
• User manual

Paquete

• Box
