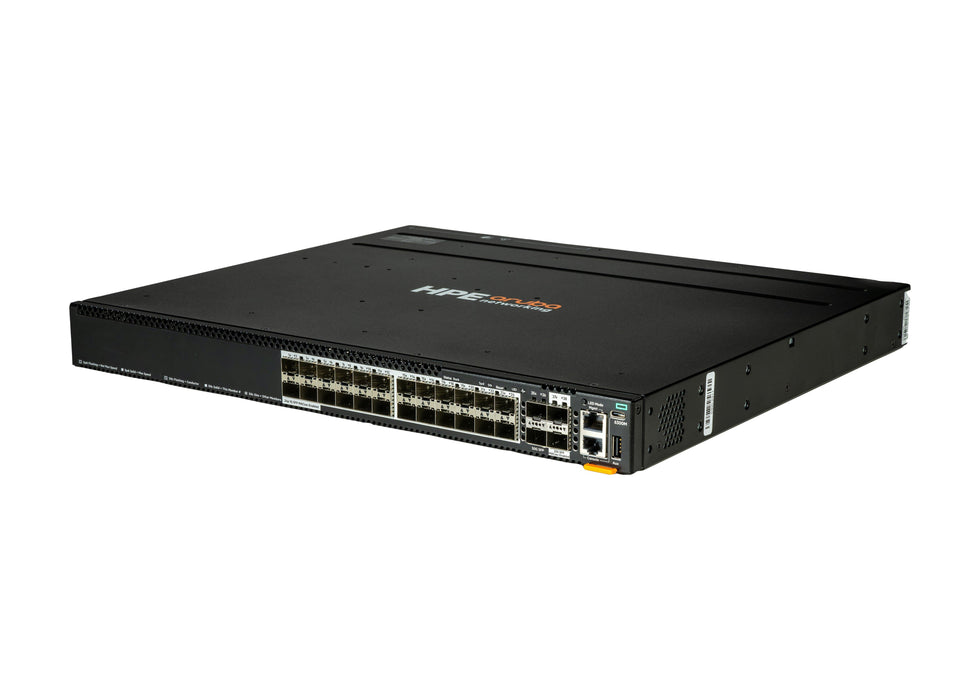

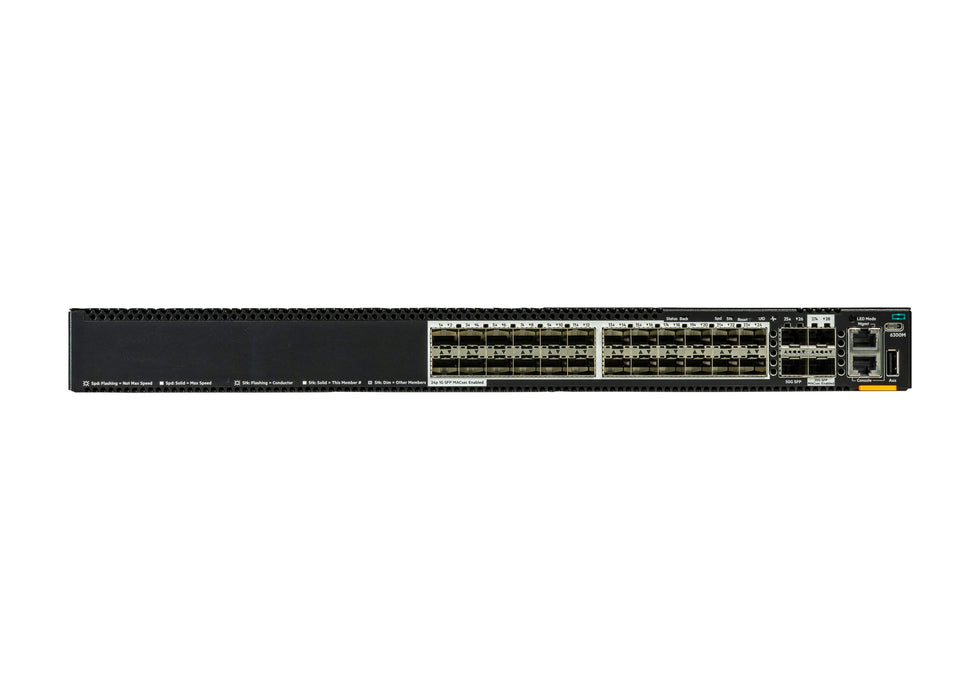

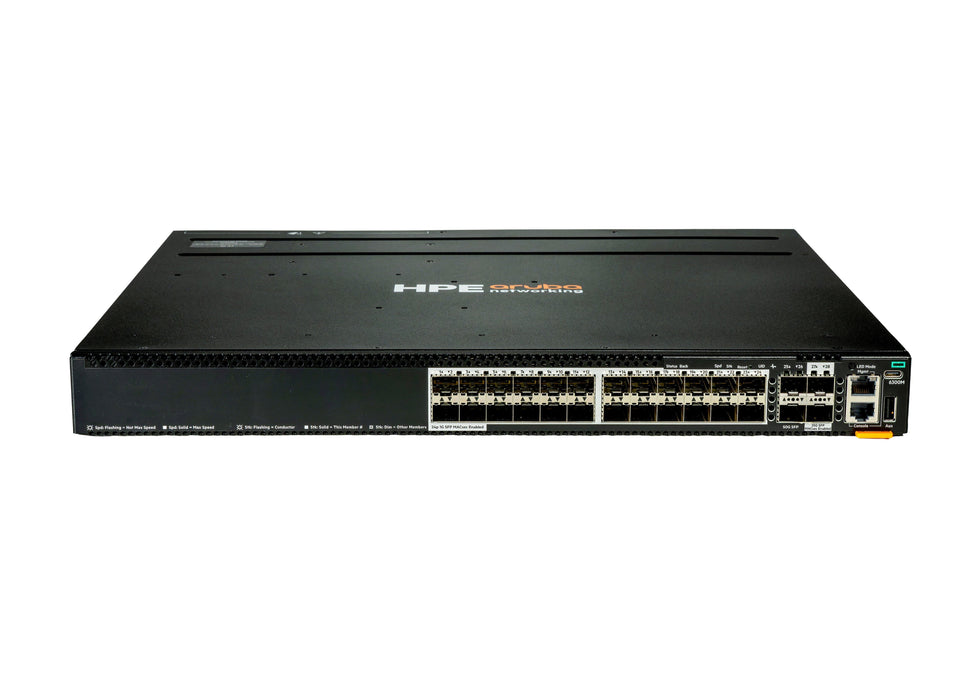

Hpe Aruba Networking Cx 6300m 24p Sfp 1g 2p Sfp56 50g 2p Sfp28 25g Macsec Switch

Full stack management and security

HPE Aruba Networking CX 6300 Switch Series es compatible con HPE Aruba Networking Central para una gestión de control de punto único que ofrece visibilidad de red mejorada y un conjunto de herramientas de IA ampliado, que aborda la escala y las demandas de los entornos de tareas cruciales más importantes.
Dynamic segmentation that automatically applies and enforces user, device, and application-aware policies on HPE Aruba Networking wired and wireless infrastructures.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better end-user experience and streamlined IT operations. Application recognition and control are available through CX Advanced Feature Pack .
Switch-to-switch tunnels enable scalable multi-tenancy support with Virtual Extensible Local-Area Networks (VXLAN) to VRF mapping, while allowing policy application through user roles .
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).

Transmisión de datos

• Capacidad de conmutación: 880 Gbit/s
• Rendimiento: 654 Mpps

Diseño

• Apilable: Si

Desempeño

• Apilamiento físico (unidades): 10
• Procesador incorporado: Si
• Frecuencia del procesador: 1800 MHz
• Tipo de memoria: DDR4-SDRAM
• Memoria interna: 8000 MB
• Memoria Flash: 32000 MB

Control de energía

• Nota de consumo de potencia: With JL086A PSU: Idle: 133W 100% Traffic Rate: 199W With JL087A PSU: Idle: 138W 100% Traffic Rate: 193W With JL670A PSU: Idle: 140W 100% Traffic Rate: 201W
• Nota de fuente de alimentación: 2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL085A and JL757A.

Alimentación a través de Ethernet (PoE)

• Energía sobre Ethernet (PoE): Si
• Potencia a través de Ethernet (PoE) Presupuesto: 2880 W

Otras características

• Latencia: 1 Gbps: 4.24 μs 10 Gbps: 1.50 μs 25 Gbps: 2.91 μs 50 Gbps: 3.49 μs
• Memoria y procesador: CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
• Puertos de entrada y salida (E/S): 48 x HPE Smart Rate 100 M [5]/1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
• Gestión de rendimiento: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
• Peso (imperial): 6,02 kg (13.3 libras)
• Ventilador: Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans.

Condiciones ambientales

• Intervalo de temperatura operativa: 0 - 45 °C

Peso y dimensiones

• Ancho: 44 mm
• Profundidad: 442 mm
• Peso: 6,02 kg
