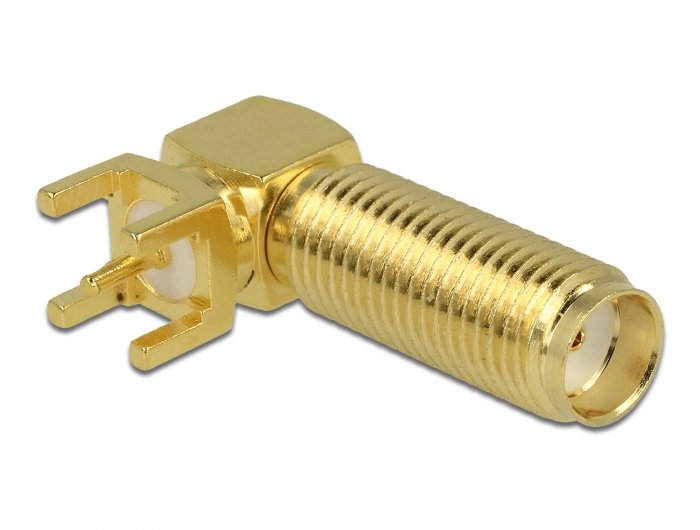

Delock 65848 Sma Jack 90° Pcb Thread Length 16 Mm

Descripción

This jack by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.

Detalles tecnicos

• Connector: 1 x SMA Jack 90°
• Pin: Brass gold plated
• Insulator: PTFE
• Housing: Brass gold plated
• Frequency range: 0 - 6 GHz
• Impedance: 50 Ohm
• VSWR: 1.5
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 16 mm
• Operating temperature: -55 °C ~ 165 °C
• Withstand Voltage: 500V / 50Hz
• Soldering: 5 solder joint
• Dimensions (LxHxD): 22.0 x 12.0 x 4.6 mm

Requisitos del sistema

• Suitable board for mounting the SMA connector

Contenido del paquete

• SMA Jack

Paquete

• Bolsa de plástico con cremallera
