Alldaq Adq-Usb 3.0-Iso-With Power Supply Unit (Eu) / Usb 3.0 Superspeed-Isolator Bis 1kv, Inkl. Passendem 5v-Meckernetzteil Eu Variante

USB 3.0 SuperSpeed isolator for galvanic isolation - ideal for measurement technology, industry, automotive and audio technology

Application examples

• Potential separation between measuring instruments and PC
• Effective suppression of hum loops - ideal for music studios and event technology
• Protection against voltage peaks in the automotive sector, e.g. when testing control units
• Decoupling of different ground potentials in industrial control technology
• Also usable as "power injector" for USB devices which are normally powered via the USB port, but which does not provide sufficient power for reliable operation of the USB device ^**

Features

• Latest isolator technology supports SuperSpeed USB 3.0 devices up to 5?Gbit/s
• Re-Clocking technology for all speeds
• Download compatible with USB 2.0/1.1/1.0^***
• insulation voltage^*: up to 1?kVDC permanent!
• Maximum power for USB 3.0 devices:
  • Without external power supply: max. 200?mA
  • With external power supply: max. 900?mA
• USB connection:

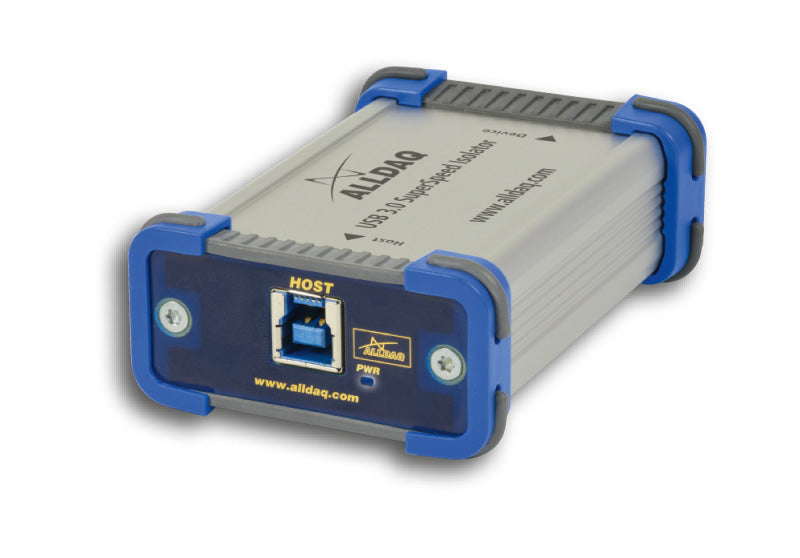

  • Host: USB 3.0 Type B socket

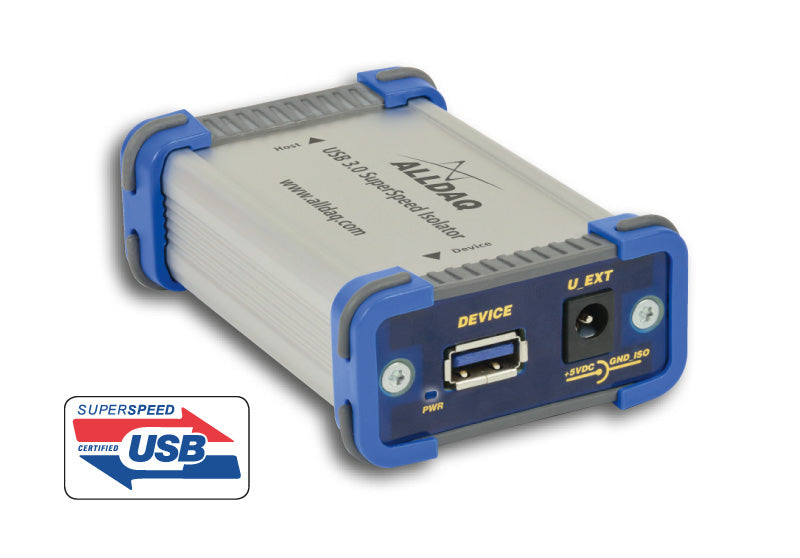

  • Device: USB 3.0 Type A socket
• Operating temperature: -20°C..+70°C
• Rel. air humidity: max. 95%
• Robust aluminium chassis with rubber buffer
• Dimensions (L x W x H): 90 mm x 62 mm x 32 mm
• Operating system support: Windows, MAC OS and Linux

Safety instruction:

This model is not approved for medical device applications.

   ^*ADQ-USB 3.0-ISO(-PS): 1?kVDC (continuous) / 1.5 kVAC <60 Hz (60s), ADQ-USB 3.0-ISO-W: 1.6?kVDC (60?s). Higher insulation voltage on request.
  ^**ADQ-USB 3.0-ISO-PS: 5?V plug-in power supply included in delivery. ADQ-USB 3.0-ISO-W: External supply must be provided.
^***When connected to a USB 2.0 host (upstream), no USB 3.0 devices are accepted on the downstream side. The cascading of multiple USB isolators is not supported.

Scope of delivery:

• USB 3.0 SuperSpeed Isolator

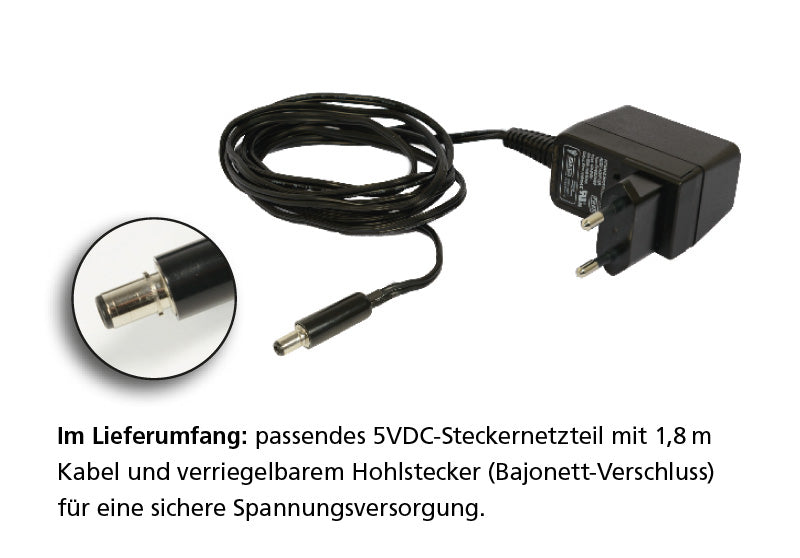

• Matching plug-in power supply (5?VDC/1.4?A) with 5.5?mm low-voltage connector with bayonet connection

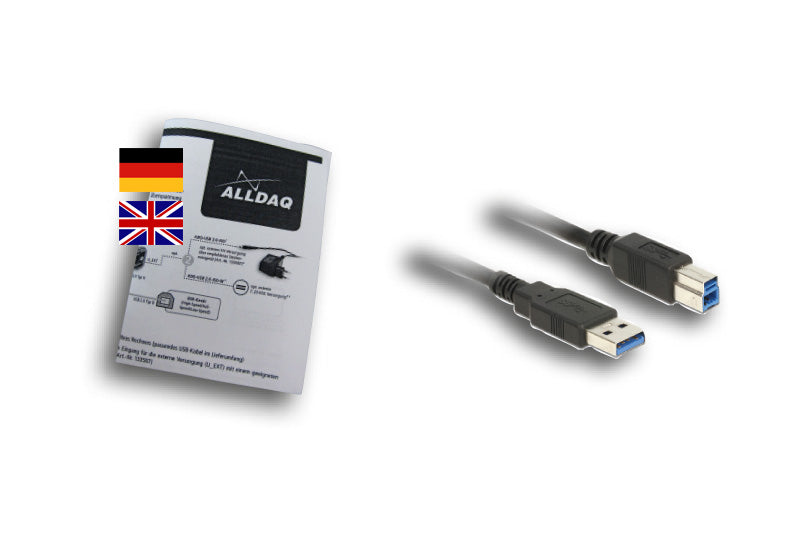

• USB 3.0 cable (USB 3.0-A plug to USB 3.0-B plug), length: 1.5 m
• Quick guide printed
