Descripción

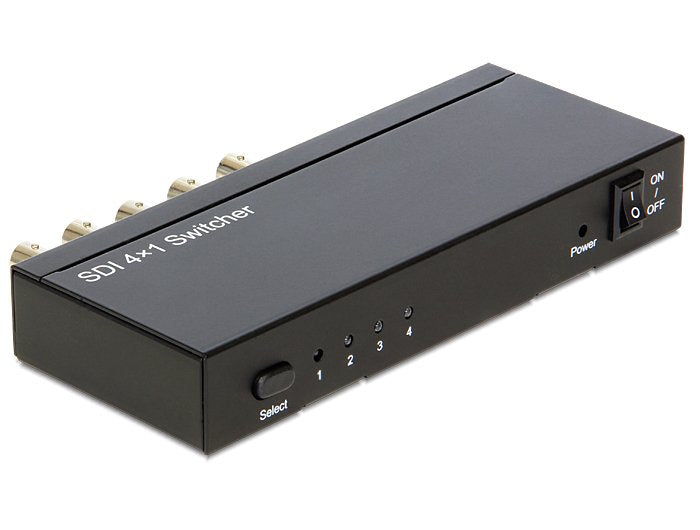

With this Delock SDI switch, up to four SDI input sources can be connect to one SDI output device, such as an HD-SDI monitor. By pressing a button on the device, it can be switched from one source to another.

Detalles tecnicos

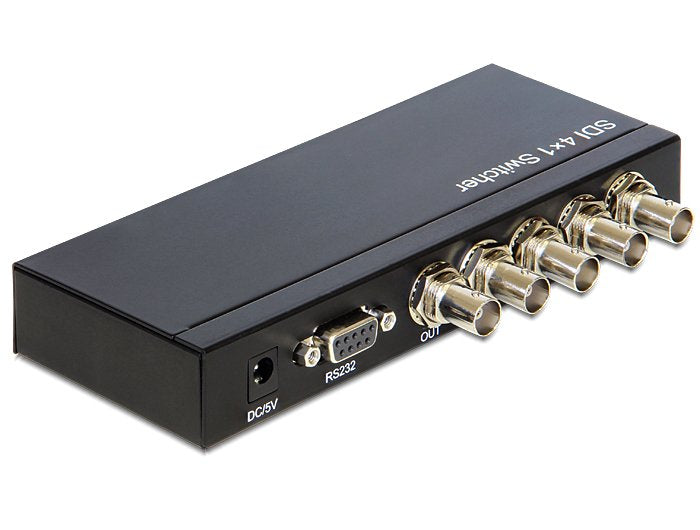

• Connectors:
  Input:
  4 x BNC female (3G-SDI)
  1 x 5 V DC jack
  Output:
  1 x BNC female (3G-SDI)
• Supported resolution:
  SD 480i, 525i and 625i
  HD 720p 24, 25, 30, 50 and 60 Hz
  HD 1080i 50, 60 Hz
  HD 1080p 24, 25, 30, 50 and 60 Hz
• Configuration and control of the device via RS232 interface
• Robust metal housing
• Power consumption: max. 3 W
• Dimensions (LxWxH): ca. 162 x 82 x 25 mm

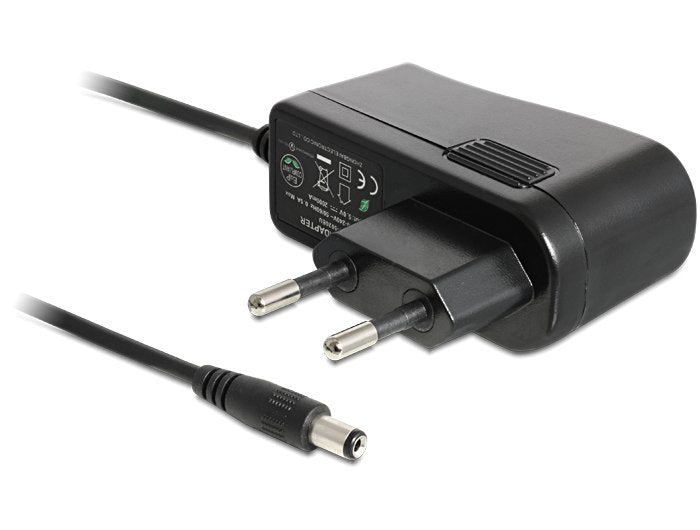

Especificaciones de la fuente de alimentación

• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 9 mm

Contenido del paquete

• 3G-SDI Switch
• Power supply

Paquete

• Box

Aviso de revisión

07/2018 New power supply
